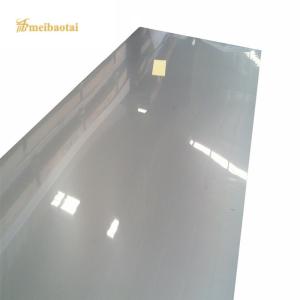

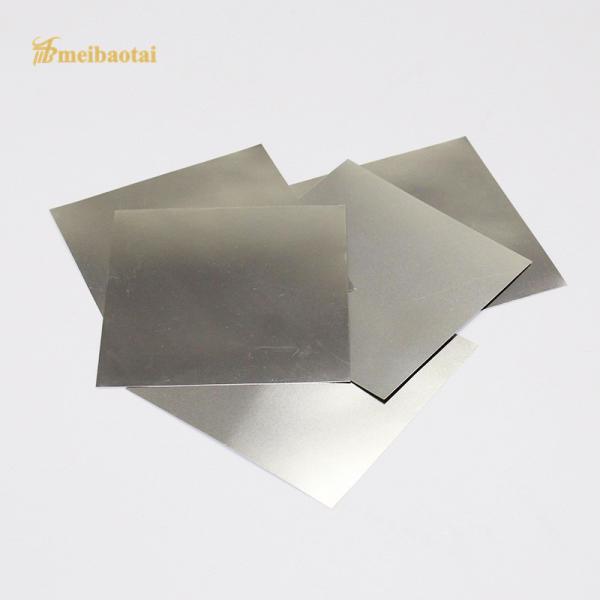

BA 430 Stainless Steel Cold Rolled Steel Sheet Metal
- Grade:430 Stainless Steel
- Shape:Flat
- Technique:Cold Rolled
- Feature:Sustainable
- Thickness:0.3-3.0mm or as required
- Shipment Time:Within 15-20 work days after receiving deposit or L/C.
- Packing:According to customers' needs, use wrapping paper. If the transportation period exceeds 10 days or encounters special climate, we will use waterproof packaging and add plastic film to prevent moisture, water and rust
| Cold Rolled Stainless Steel Coil/Sheet/Plate Information |
| Technique | Surface Finished | Grade Series | Thickness(mm) | Width(mm) |
| Main Dimension |
| 20-850 | 1000 | 1219 | 1240 | 1250 | 1500 |
| Cold Rolled | 2B | 201/304/316L | 0.25-3.00 | √ | √ | √ | √ | | √ |
| 410S/430 | 0.25-2.00 | √ | √ | √ | √ | √ | √ |
| NO.4/Hairline/Mirror/Linen SB | 201/304/316L | 0.22-3.00 | √ | √ | √ | √ | | |
| 410S/430 | 0.25-2.00 | √ | √ | √ | √ | √ | |
| BA | 201/304 | 0.20-1.80 | √ | √ | √ | √ | √ | |
| 410S/430 | 0.25-2.00 | √ | √ | √ | √ | | |
| 2BA | 410S/430 | 0.25-2.00 | √ | √ | √ | √ | | |
| Chemical composition and mechanical properties of stainless steel coils |
| Grade | Chemical Composition (%) | Mechanical Performance |
| C | Si | Mn | P | S | Ni | Cr | Mo | Hardness |
| 201 | ≤0.15 | ≤1.00 | 5.5/7.5 | ≤0.060 | ≤0.030 | 3.5/5.5 | 16.0/18.0 | - | HB≤241,HRB≤100, HV≤240 |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0/11.0 | 18.00/20.00 | - | HB≤187,HRB≤90,HV≤200 |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
| 410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.030 | ≤0.060 | 11.5/13.5 | - | HB≤183, HRB≤88 HV≤200 |
| 430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | - | 16.00/18.00 | - | HB≤183, HRB≤88 HV≤200 |
Surface
Finish | Definition | Application |
| 2B | Finished by heat treatment , picking or equivalent cold rolling , followed by skin pass to obtain adequate luster surface. | With bright and smooth surface ,easy for further grinding to obtain brighter surface ,suitable for medical instruments ,milk containers ,tableware and so on. |
| BA | Bright heat treatment after cold rolling. | Structural members .etc.kitchen utensil ,cutlery ,electric appliances ,medical instruments ,building decorations ,etc. |
| NO.3/NO.4 | Polished with No.150-240 abrasives. | Milky food processing equipment , medical instruments ,building decorations. |
| HL | Finished by polishing with abrasives of suitable grain size to obtain continuous streaks. | Building decorations ,such as elevators ,escalators ,door etc. |
| 6K/8K | A mirror-like reflective surface ,which is obtained by polishing with successively finer abrasives and buffing extensively with all grit lines are removed. | Building entrances,bulking column casting ,elevator's wall doors ,counters,sculptures etc. |
FAQ
Q1: HOW CAN I GET SOME SAMPLE?
A1: Through the international express delivery,like UPS,DHL,TNT.
Q2: COULD WE GET A SAMPLE BEFORE A FORMAL ORDER?
A2: Yes, we can provide a sample before order. Checking a sample is a best way to understand the detail quality.
Q3: WHAT KIND OF PACKAGING COULD YOU PRODUCE?
A3: According to customers' needs, use wrapping paper. If the transportation period exceeds 10 days or encounters special climate, we will use waterproof packaging and add plastic film to prevent moisture, water and rust
Q4: WHAT TYPES OF PAYMENT DO YOU ACCEPT?
A4: The types of payment we usually use L/C and T/T.
Q5:About the complaint,quality problem,etc after sales service,how do you handle it?
A5:We will have certain colleague to follow our order accordingly for each order with professional after-sales service. If any claim happen, we will take our responsibility and compensate as per contract. For better serve our client, we'll keep tracing feedback of our products from clients and that's what make us different from other suppliers. We're customer care enterprise.
Q6:WHAT ARE MEIBAOTAI’S MAIN PRODUCTS?
A6:We have total 9 categories of products into 13 series and 122 types of solutions fit the most scenarios of buildings Such as Passenger elevator, Cargo Elevator, Home elevator, Escalator and Moving walks,…etc.
Q7:WHAT IS YOUR DELIVERY TIME AND THE SUPPLY ABILITY?
A7:Our production capacity is 7000-8000tons / month.
Stainless steel sheet packaging and loading
1 Stainless steel sheets covered with wooden plate for protection in transportation.
2. All stainless steel sheets will be loaded in strong wooden packages.
3. Every cartons loaded with good shoring and strengthening.
4. Take container loading pictures and seal the container.
5. Transportation speed is quick. And keep customer each step informed.
Product Tags:
|
|
BA 430 Cold Rolled Stainless Steel Sheet Metal Sustainable 3.0mm Thickness Images
|
